KADS Hydraulic Seals combination sealing ring

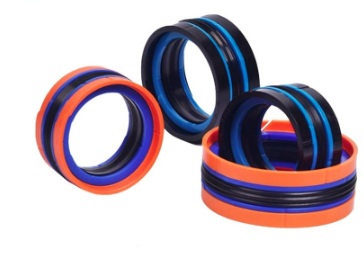

KADS  Hydraulic Seals  combination sealing ring is a bidirectional piston sealing ring combination. A combination sealing ring suitable for installation in a closed trench.

The sealing ring is composed of an elastic rubber ring, two additional gear rings, and two wear-resistant rings. A truly sealing element in the middle; Place a retaining ring and a wear ring on each side. The retaining ring prevents the sealing ring from being squeezed into the gap; The middle sealing ring is a toothed sealing ring, which can provide a good sealing effect when stationary and in motion. The function of the wear-resistant ring is to guide the piston in the cylinder body and withstand radial force.

KADS  Combined Sealing Product Description:

The kdas combination sealing ring is a bidirectional piston sealing ring.

This combination sealing ring is composed of an elastic rubber ring, two additional retaining rings, and two wear-resistant rings. This design provides a compact solution that combines sealing and guidance, and is suitable for installing composite sealing rings in closed grooves.

advantage

- Closed grooves and integral pistons

- The total length of the piston is relatively short

- The sealing ring and wear ring share a common groove

- Low production cost of piston

- Sealing rings and wear rings are affordable

- Extremely strong resistance to extrusion of gaps

- Elastic sealing rings do not twist or flip

- Good anti leakage performance

- The retaining ring and wear ring with oblique cuts are easy to assemble
